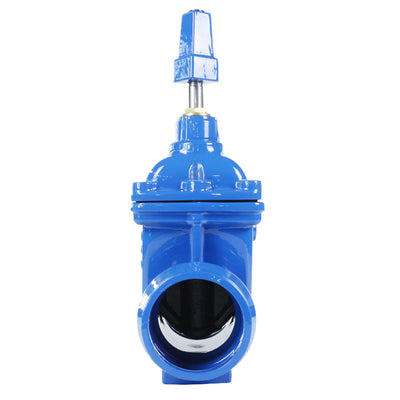

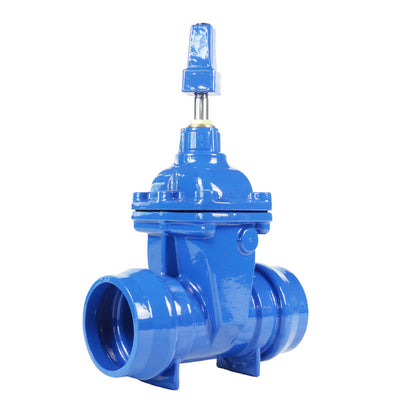

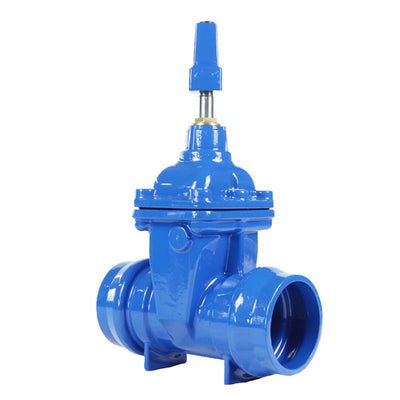

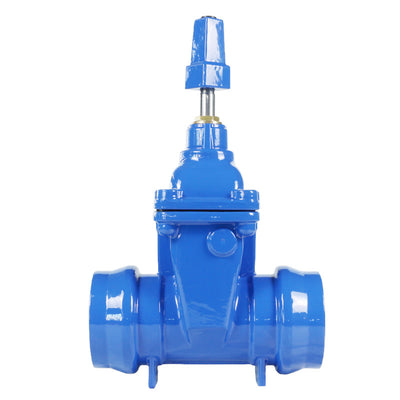

Socket Type Soft Seal Gate Valve Square Cap Introduction

Socket type soft seal gate valves are widely used in various industries for their reliable sealing and ease of operation. The square cap design provides a robust and secure method for manual operation. These valves are known for their ability to provide a tight seal, even in low-pressure conditions, making them ideal for applications where leak prevention is critical.

Socket Type Soft Seal Gate Valve Square Cap Drawing

Socket Type Soft Seal Gate Valve Square Cap Drawing

Standard of Implementation

Category	Details
Type	Flange
Face to Face	API609, BS5155, DIN3202, ISO5752
Flange	DIN, BS, UNI, ISO, ANSI, AS, JIS
Mounting Flange	ISO5211
Working Pressure	PN16 (200PSI)
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/petrochemical processing, Power and Utilities, Paper and Pulp, Ship Building

Standard Materials Of Main Parts

NO.	PART	MATERIAL
1	Body	Ductile iron
2	Wedge	DI+EPDM
3	Stem Nut	Brass
4	Stem	2Cr13
5	Gasket	NBR
6	Bonnet	Ductile iron
7	Nut	Brass
8	Locating Ring	Brass
9	TOP Capl	Ductile iron
10	O Ring	NBR
11	Anti Dust Ring	NBR
12	Seal Ring	NBR
13	Rubber Ring	NBR

Dimensions:(mm)

DN	40	50	65	80	100	125	150	200	250	300
F5	240	250	270	280	300	325	350	400	450	500
SABS	335	335	335	335	355	375	405	450	450	500
