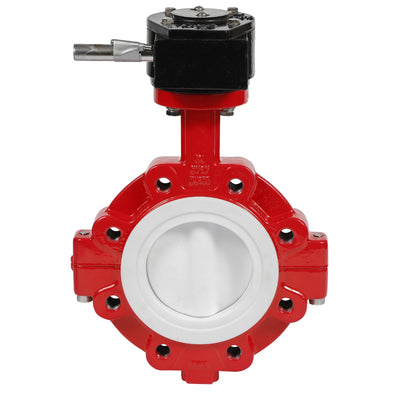

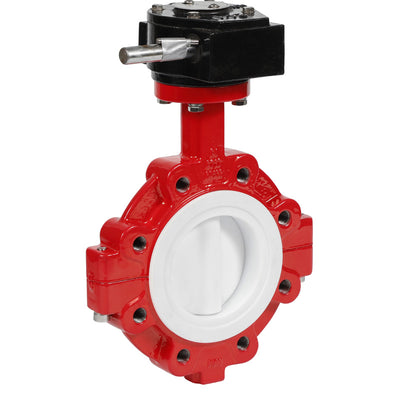

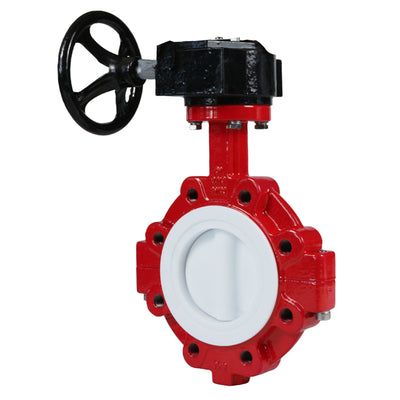

PTFE Coated Lug Butterfly Valve Introduction

PTFE Coated Lug Butterfly Valve is a type of butterfly valve designed for use in highly corrosive and demanding environments. The PTFE (Polytetrafluoroethylene) coating provides exceptional chemical resistance, making it ideal for handling aggressive chemicals, acids, and gases. Its lug-style design allows for easy installation between flanges, ensuring secure connections. This valve offers reliable sealing, low friction, and minimal maintenance, making it suitable for industries like chemical processing, wastewater treatment, and pharmaceuticals.

Features of PTFE butterfly valve

High Corrosion Resistance: The PTFE coating provides excellent resistance to aggressive chemicals, acids, and corrosive gases.
Reliable Sealing: Offers tight sealing for leak-proof performance, suitable for a wide range of media.
Low Friction: The PTFE lining minimizes friction, resulting in smooth operation and reduced wear over time.
Easy Installation: The lug-style design allows for quick, secure installation between flanges, supporting easier maintenance.

PTFE Coated Lug Butterfly Valve Drawing

Standard Materials Of Main Parts

NO	NAME	MATERIAL
1	Body	DI
2	Seat	PTFE
3	Disc	CF8+PTFE/PFA
4	Lower Stem	SS420
5	Upper Stem	SS420
6	Nut	SS
7	Gear

Nominal Pressure		0.6	Mpa
Testing Pressure	shell	0.9
	sealing	0.66

Dimensions:(mm)

SIZE		L	PN10
in	DN	L	D1	N-M
2	50	43	125	4-M16
2.5	65	46	145	4-M16
3	80	46	160	8-M16
4	100	52	180	8-M16
5	125	56	210	8-M16
6	150	56	240	8-M20
8	200	60	295	8-M20
10	250	68	350	12-M20
12	300	78	400	12-M20
14	350	78	460	16-M20
16	400	102	515	16-M24
18	450	114	565	20-M24
20	500	127	620	20-M24
24	600	154	725	20-M27
